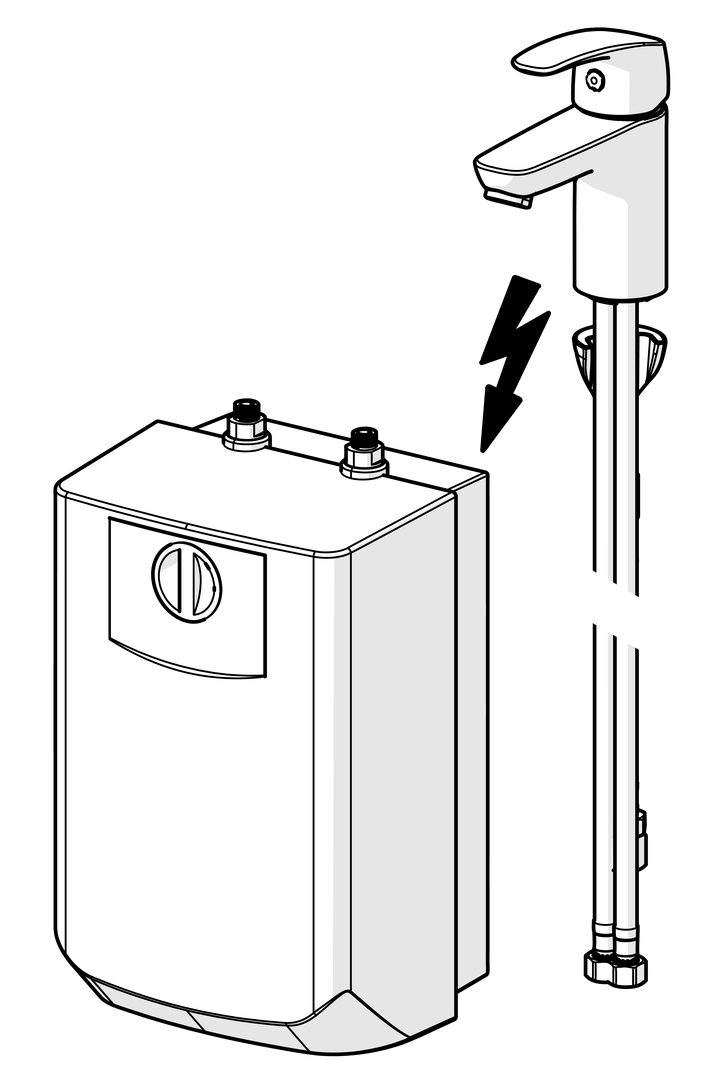

1003F | Washbasin faucet for summer house

Oras Safira

EAN code
6414150078538
Active markets
FIN, SWE, NOR, DNK, POL, EST, LVA, LTU

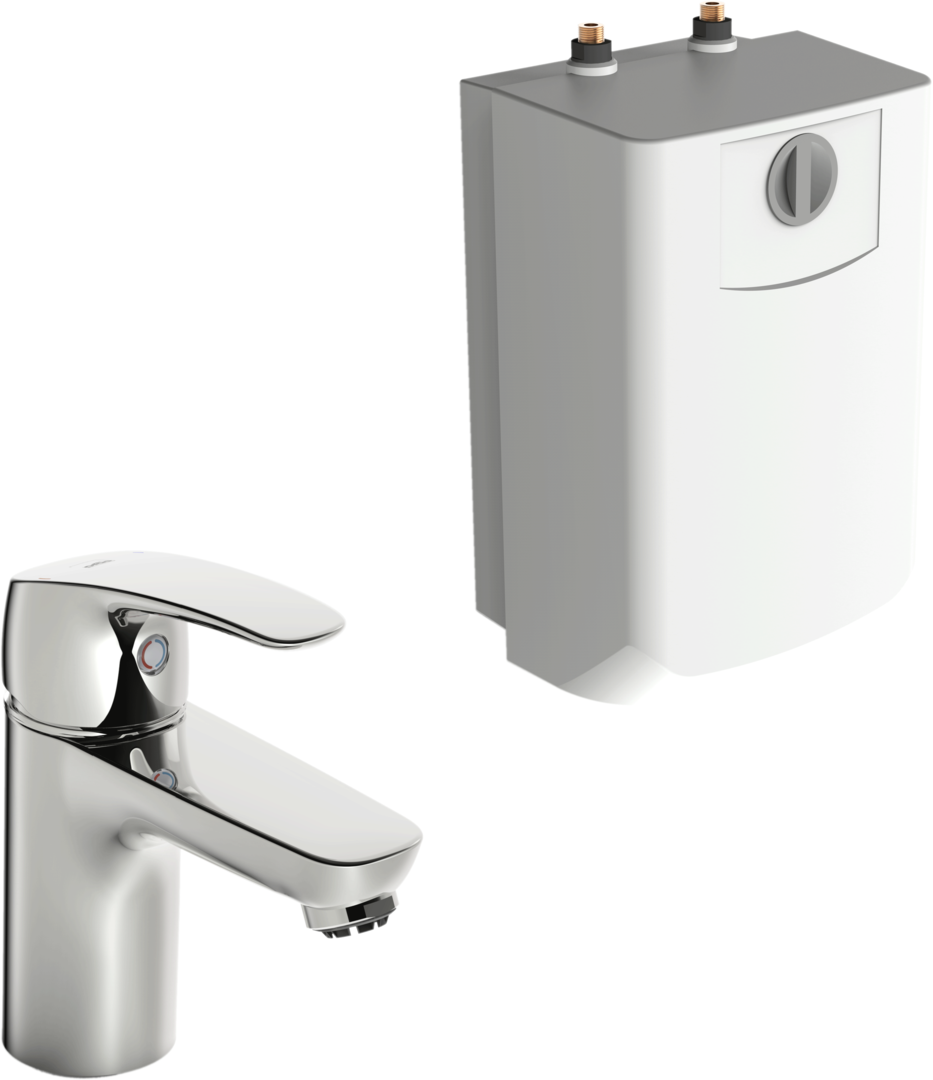

Washbasin faucet for summer house and water heater. Fixed spout and aerator. Maximum flow-rate 5 l/min. Due to the heating of water, water dripping from the aerator is a feature of this product and should not prevented. The aerator may not be changed or supplemented with additional components. Plug in, unpressurized water heater, 5 l. Easy to install. Range of use +35° – 85°C (recommendation + 65°C). In order to prevent frost damage, the faucet and the water heater must be emptied. This water heater is only allowed to operate with the original Oras summer house faucet. Warning! Water heater can heat the water up to +85°C. Beware of the instant scalding hot water from the faucet. The faucet and the water heater should not be installed separately.

Find local retailer
Features
  • Connection Flexible inlet pipes

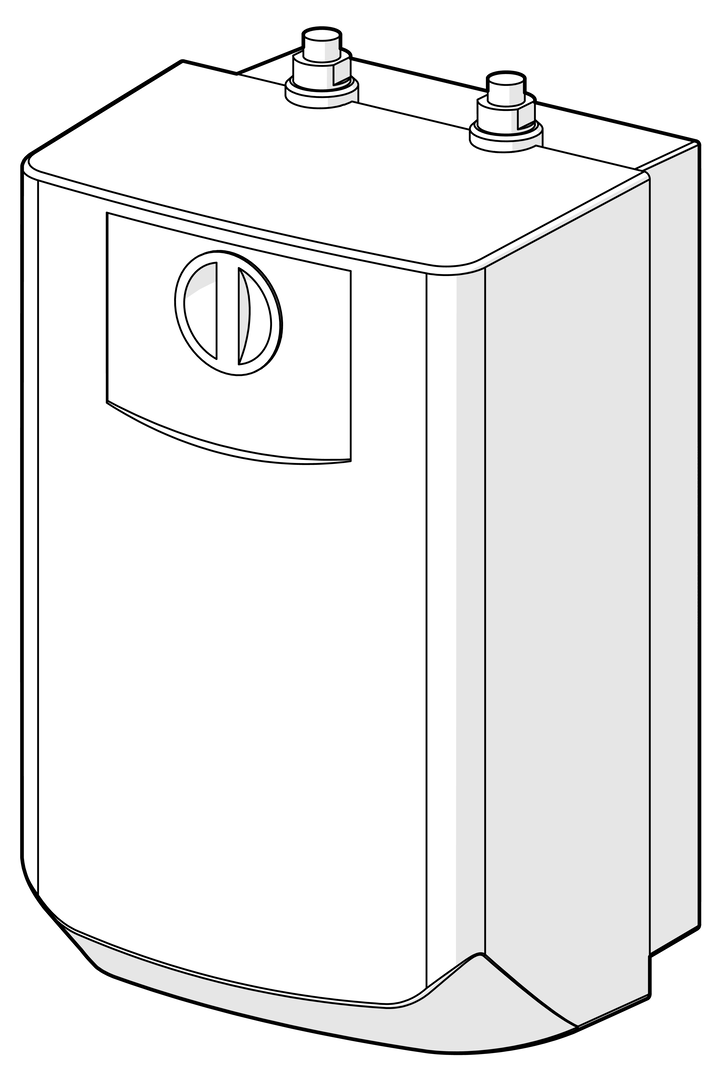

  • Extensions Water heater unit, Chain holder without chain
  • Lever/Handle Single operating lever/handle, Hot/Cold symbols
  • Mechanical parts Litter filter(s), ø 40 mm ceramic cartridge for flow and temperature control

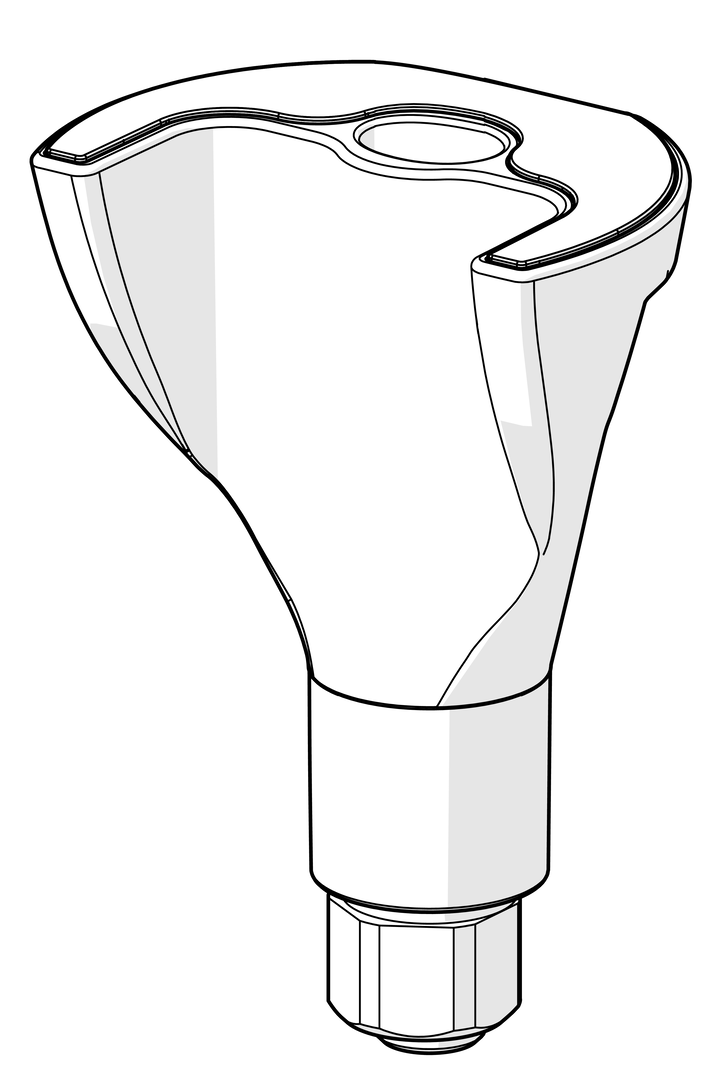

  • Advanced features 3S-installation system for safe and simple mounting
  • Spout Fixed spout
  • Color Chrome
  • Temperature Limitation option for maximum temperature and flow-rate

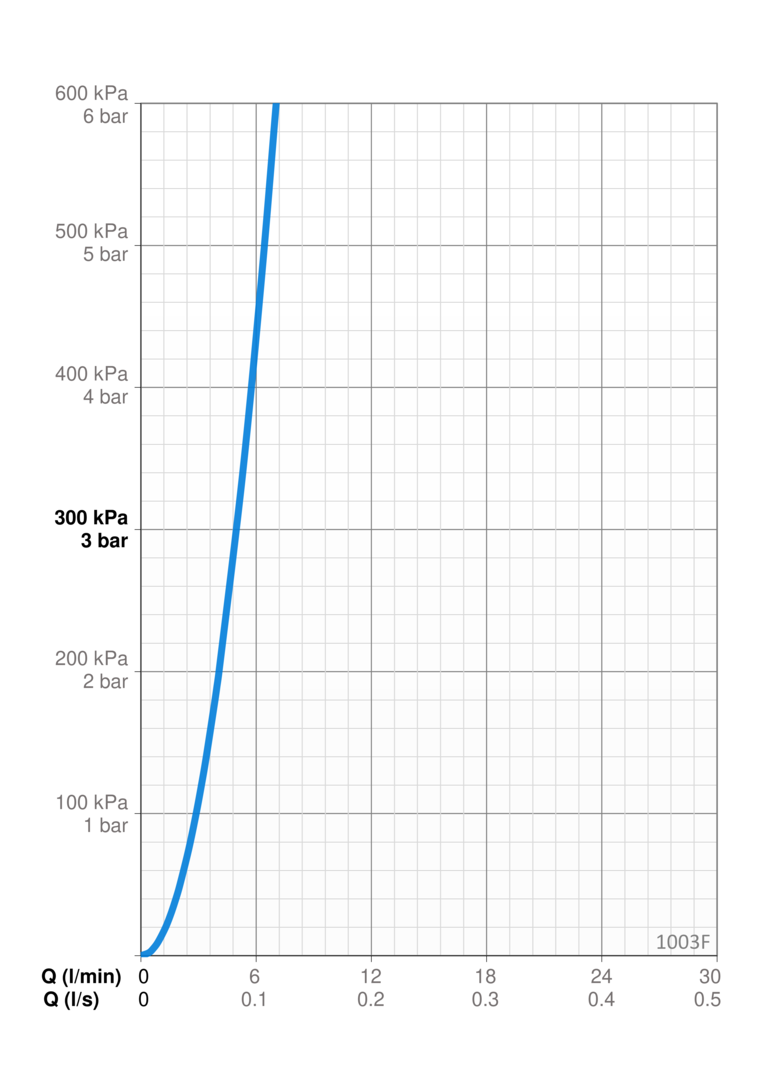

Flow attributes
  • Flow-rate at 300 kPa 0.083 l/s
  • Pressure loss with flow (0.1 l/s) 435 kPa
Technical properties
  • Backflow prevention (EN1717) AA
  • Connection size G3/8
  • Hot water supply max. +70°C
  • Material Brass

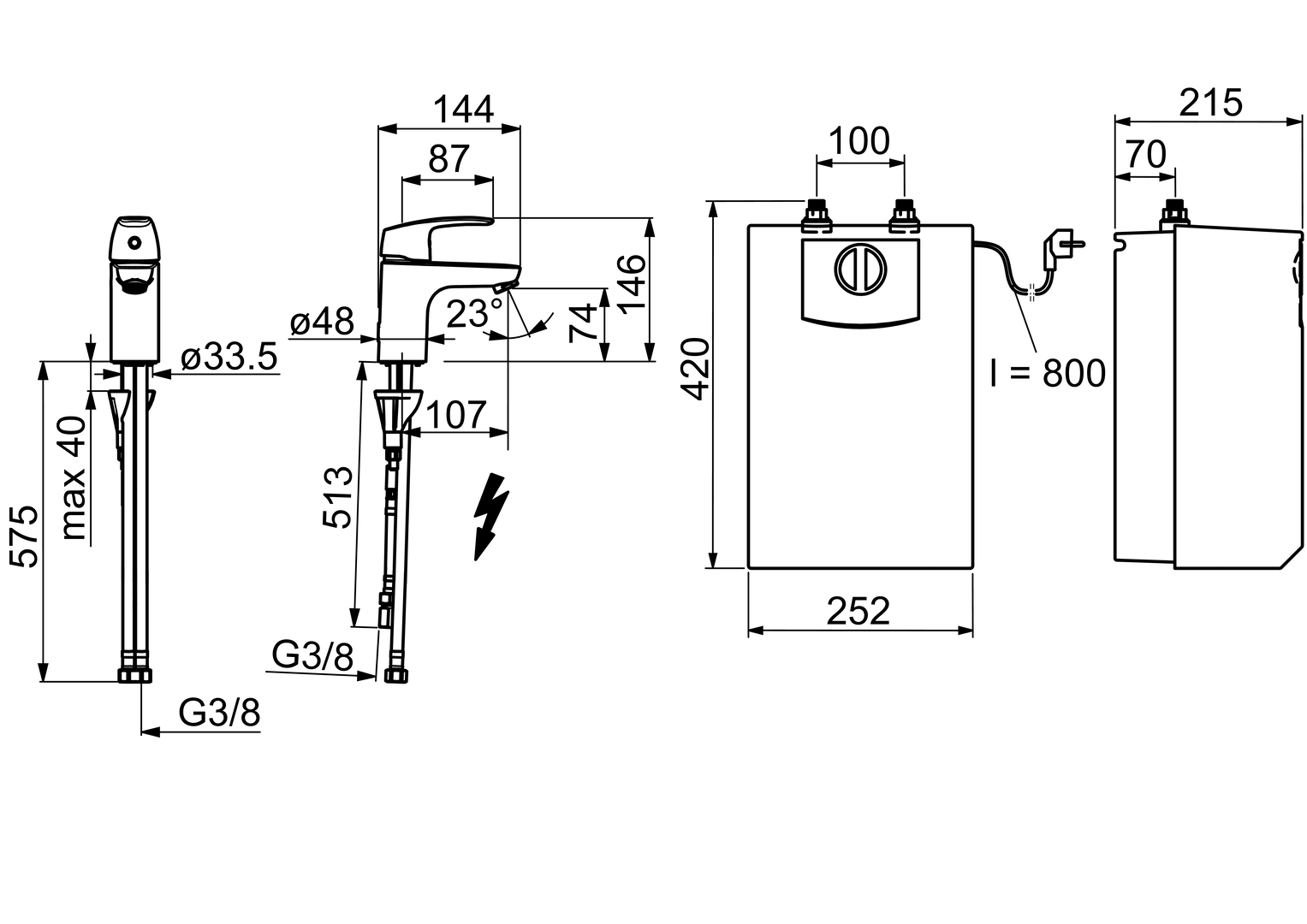

  • Projection 107 mm
  • Working pressure 50 - 1000 kPa
Regulations
  • EN standard EN 817
  • Noise class I (ISO 3822)

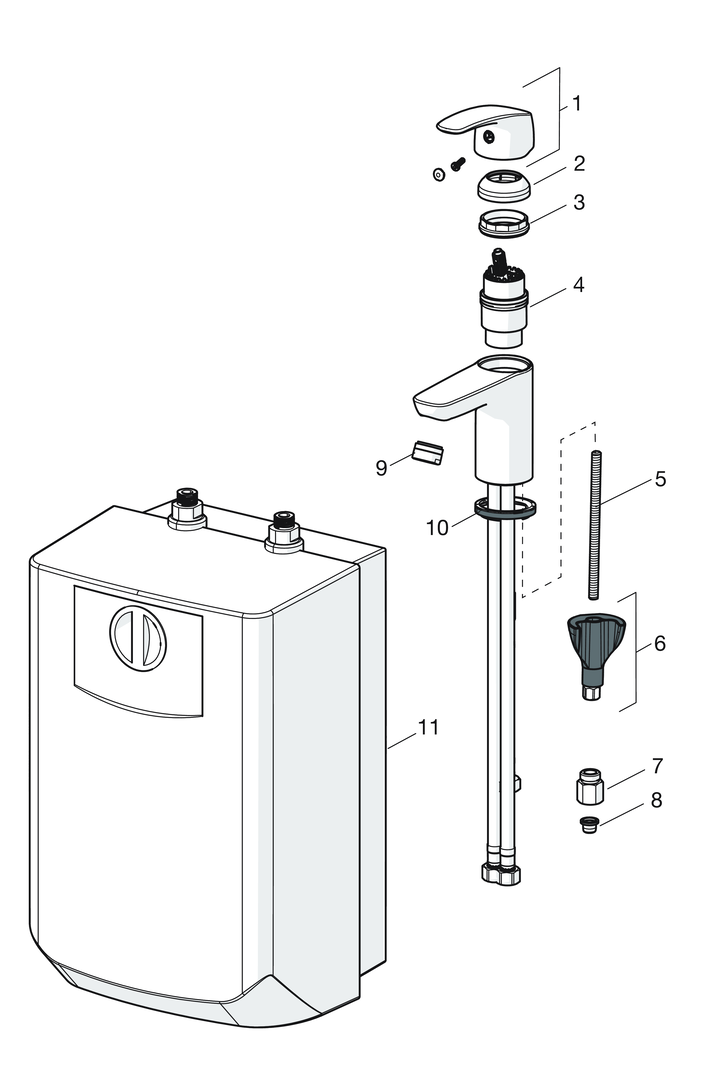

SP1003F Washbasin faucet for summer house

Ask pricing from your local retailers.

Oras, Rapid pop-up waste, 200060
Oras
Rapid pop-up waste
200060
Oras, Angle coupling pair with stop valves, G1/2, 281215/2
Oras
Angle coupling pair with stop valves, G1/2
281215/2
Oras, Key, 13 mm, 910011
Oras
Key, 13 mm
910011
